YPG系列壓力式噴霧造粒干燥機
概述 Description
本機是將料液壓入位于塔體頂部的噴嘴霧化成微小霧滴，同塔頂熱風平行而下完成干燥。該機具有收塵率高，無粘壁、節能高效等特點，特別適用于熱敏性物料干燥。廣泛應用于食品染料、中間體等行業。
The material is sprayed into exiguity fog by nozzle on the top of tower. Follow the heat wind, the material is dried. The machine's characteristic is high collect drit, no past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry and so on.
----------------------------------------------------------------------------------------------------------------

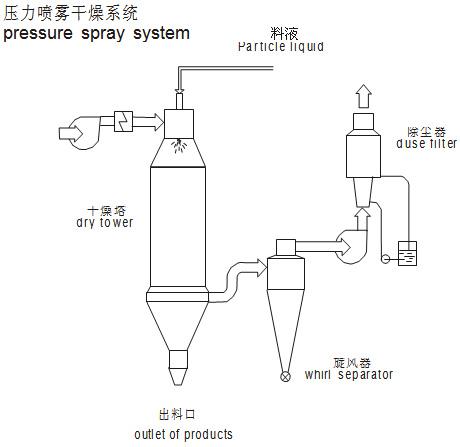

工藝流程 Technological proccess
----------------------------------------------------------------------------------------------------------------
技術參數 Technical parameters
| 型號Type | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 水份蒸發量 Water evaporation capacity kg/g |
50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 外形尺寸 Overall dimension (φ×H) mm |
1600×890 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| 高壓泵壓力 High-pressure pump pressure Mpa |
2-10 | ||||||
| 功率 Power KW |
8.5 | 14 | 22 | 24 | 30 | 45 | 75 |
| 進風溫度 Inlet air temperature ℃ |
300-350 | ||||||
| 產品含水量 Product water contents % |
＜5(可達0.5) Less than 5; and 0.5 can be reached | ||||||
| 物料回收 Material restoration % |
＞97 | ||||||
| 電加熱 Electric heating Kw |
75 | 120 | 150 | 溫度低于200時，具體按實際計算。 When the temperature is lower than 200, the parameters should be calculated according to the practical condition. |
|||
| 電加蒸汽 Electrically producing steam Mpa+kw |
0.5+54 | 0.6+90 | 0.6+108 | ||||
| 熱風爐 Hot air furnace Kcal/h |
100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
----------------------------------------------------------------------------------------------------------------
應用 Application
本機主要適用于醫藥、食品、化工等行業進行粉末或顆粒物料的干燥。
◎ 食品工業：全脂奶粉、胳朊、可可奶粉、代乳粉、蛋青(黃)等。燕麥、雞汁、咖啡、速溶茶、調味香料肉、蛋白質 、大豆、花生、蛋白質、蛋白質水解物等。玉米漿、玉米淀粉、葡萄糖、果膠、麥芽糖、山梨酸鉀、南瓜粉等。
◎ 醫藥品：中藥浸膏、藥膠、酵母、維生素、抗生素、淀粉酶、脂肪酶等。
◎ 塑料樹脂：AB、ABS乳液、尿醛樹脂、酚醛樹脂、密膠(脲)甲醛樹脂、聚乙烯、聚氯乙烯等。
◎ 洗滌劑：高級洗衣粉、普通洗衣粉、肥皂粉、蘇打粉、乳化劑、增白劑、磷酸劑等。
◎ 化學工業：氟化鈉(鉀)、堿性染料顏料、染料中間體、Mn3O4、 甲荃硅酸、催化劑、硫酸劑、氨基酸、白炭黑等。
◎ 陶瓷：氧化鋁、瓷磚材料、氧化鎂、滑石等。
◎ 其它：氫氧化鋁、氯化鈣、硬脂酸劑等冷卻噴霧。
◎ Food Industry: fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white(yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth. Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
◎ Medicine: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase, lipase and etc.
◎ Plastics and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chlor- oprene and etc.
◎ Detergent: Common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
◎ Chemical Industry: Sodium fluoride(potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
◎ Ceramic: aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.
◎ Other: Calmogastrin, hime chloride, stearic acid agent and the cooling spray.
